Brookfield Place

Calgary’s Brookfield Place towers over most of its neighbours. The 56-storey East Tower is one of Western Canada’s tallest buildings.

CALGARY, AB

The East Tower (Phase 1) was joined by a 42-storey West Tower.

The two towers are connected by a ground floor and mezzanine space contained in a 63-foot-high Winter Garden Pavilion.

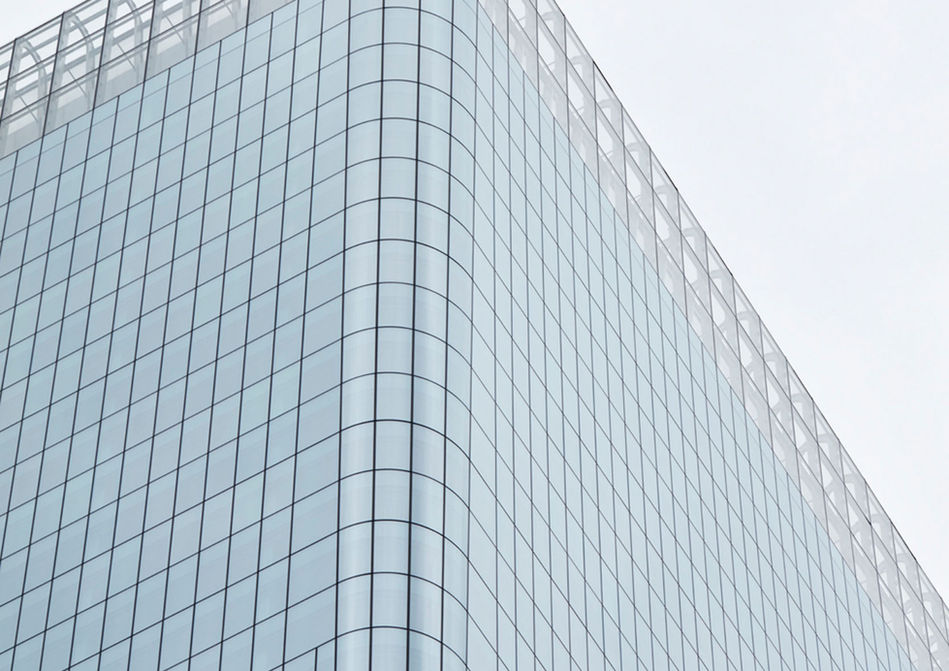

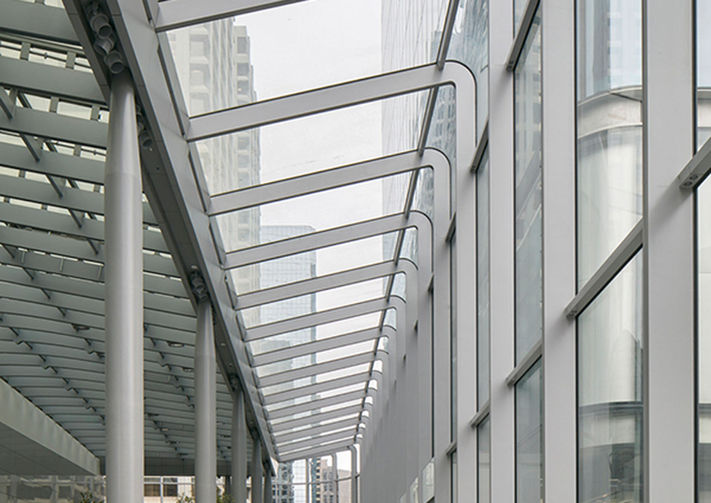

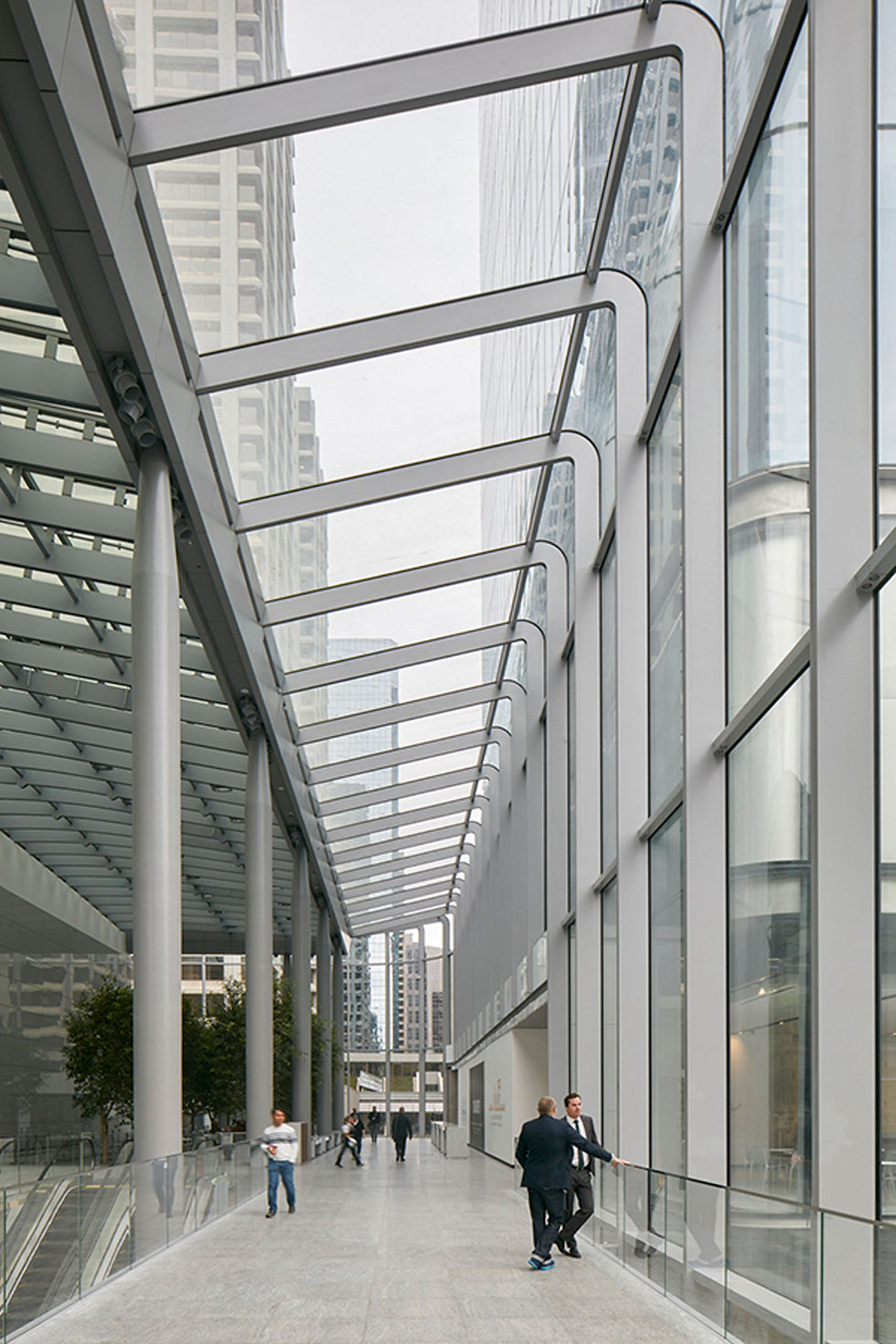

The building envelope systems on the East Tower include unitized curtain wall with curved conical corner glass, structural glass wall systems at the crown and ground floor spaces of the building, and insulated metal cladding systems. The Winter Garden Pavilion is a jewel, box-like structure consisting of glass walls and roof softened by rounded corners and edges. Mullion sections measuring 13 inches by 3 inches support the pavilion’s glass envelope.

The development connects with neighbouring buildings via Calgary’s +15 pedestrian walkway. Both the ground floor and +15 levels feature lobby and retail space.

The tower contains reinforced concrete cores with structural steel floor framing and exterior columns. The below-grade structure consists of reinforced concrete columns, slab, and wall construction. Crews demolished sections of underground parking nearby to accommodate the East Tower’s footprint and five-storey basement, a hole that took five months to excavate.

PROJECT HIGHLIGHTS

CLIENT

Brookfield Office Properties

ARCHITECT

Arney Fender Katsalidis;
DIALOG

OUR ROLE(S)

Structural Engineering Consultant;
Building Envelope Consultant

SIZE

East Tower: 153,166 m² (1,648,665 ft²) at 51 storeys;
West Tower: 85,100 m² (916,009 ft²) at 41 storeys;
Winter Garden: 2,600 m² (27,986 ft²)

BUDGET

-

MARKET (OFFICE)

CALGARY
