Port Lands Flood Protection & Enabling Infrastructure Project (PLFPEIP)

The Port Lands is a 400-hectare district currently undergoing massive development that will see it revitalized for Toronto’s growing population.

TORONTO, ON

The Port Lands is a 400-hectare district currently undergoing massive development that will see it revitalized for Toronto’s growing population.

The Port Lands Flood Protection & Enabling Infrastructure Project has two primary goals: comprehensive flood protection for the Port Lands, as well as the creation of crucial infrastructure that will support creative and economic growth in the area. Recreational, cultural, and tourist amenities will springboard the Port Lands into the future.

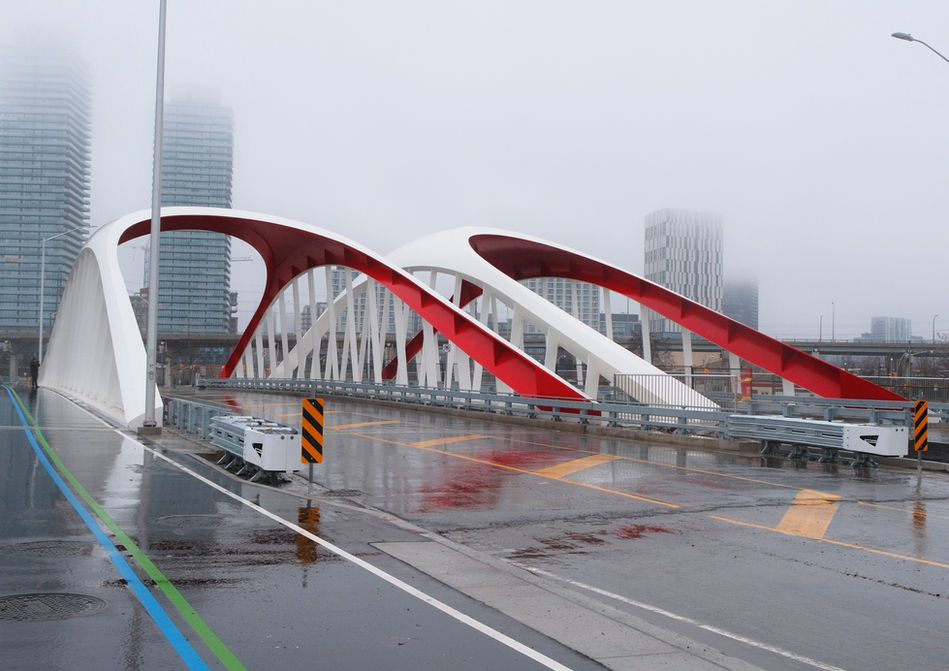

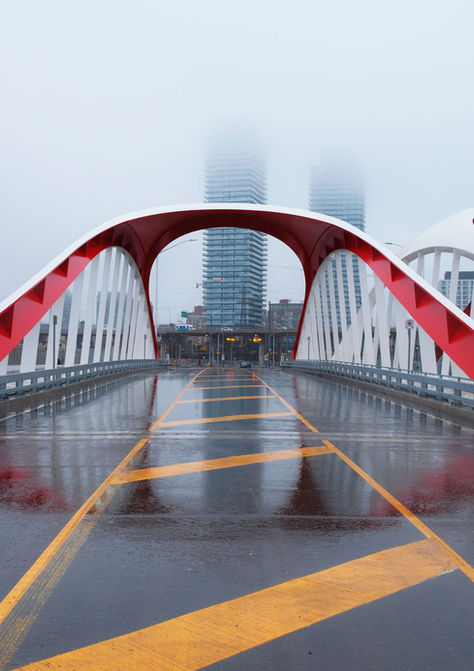

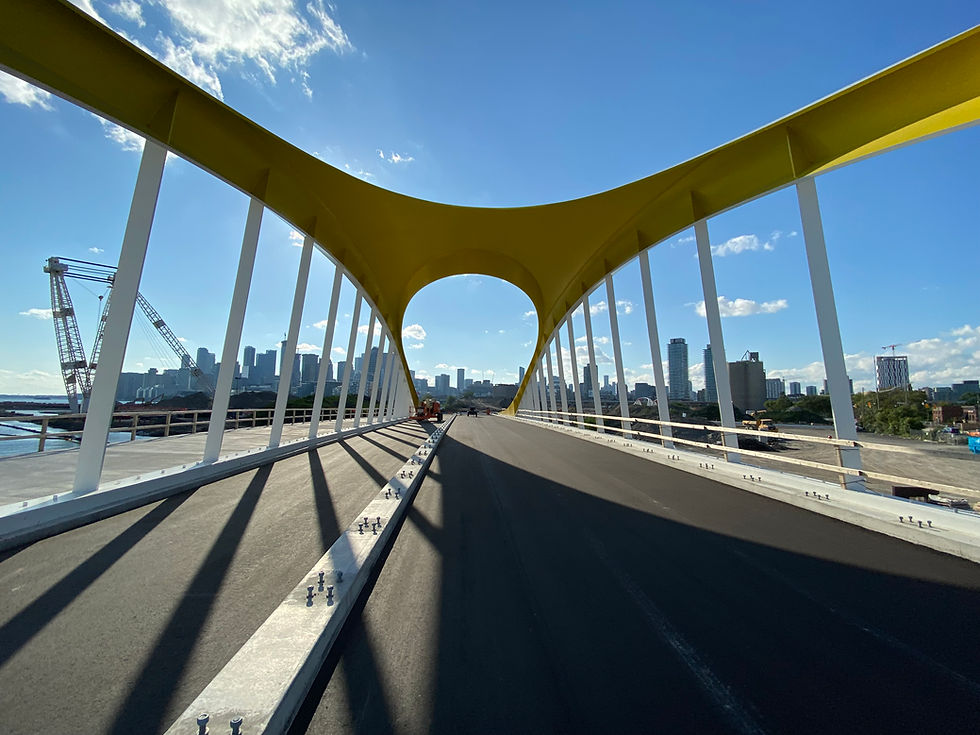

The bridges are steel tied arch structures using open steel plate/shell elements with many of the plates in double curvature. The bridge lengths vary from 56.1 m to 151.8 m. Foundations for the bridges are drilled piers varying from 1.8 m to 2.4 m in diameter socketed into bed rock.

The poor soil overburden conditions, irregular bridge configuration, and Major Route Category of two of the bridges made it necessary to complete a seismic assessment using Elastic Dynamic Analysis. Detailed vehicle-induced vibration was also completed for the bridges, including design for provisional tuned mass dampers.

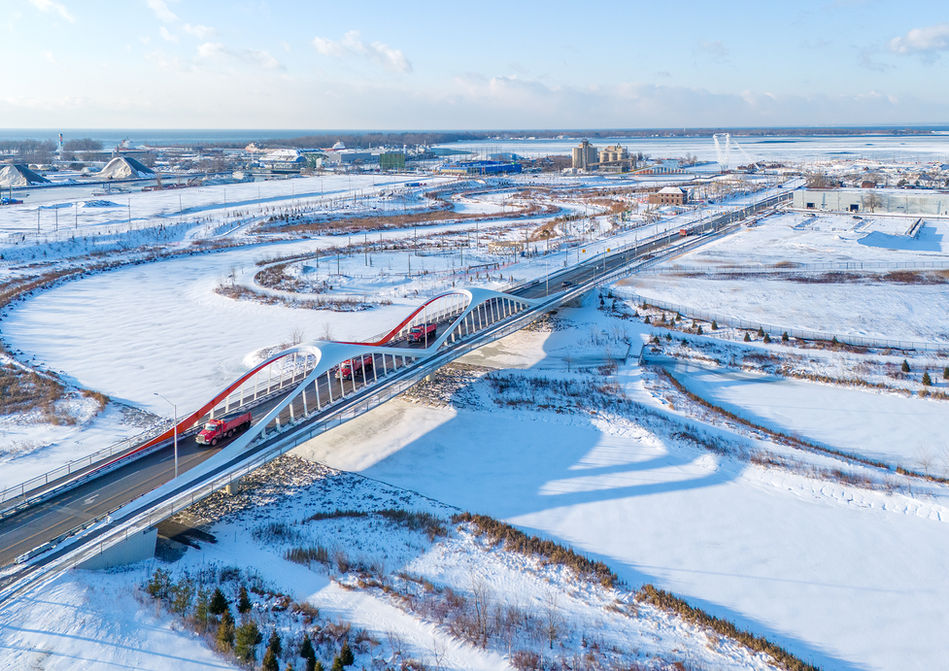

The area is bounded by the Keating Channel/Don River and Lake Shore Boulevard to the north, the Toronto Inner Harbour to the west, Ashbridge’s Bay to the east, and Lake Ontario and Tommy Thompson park to the south.

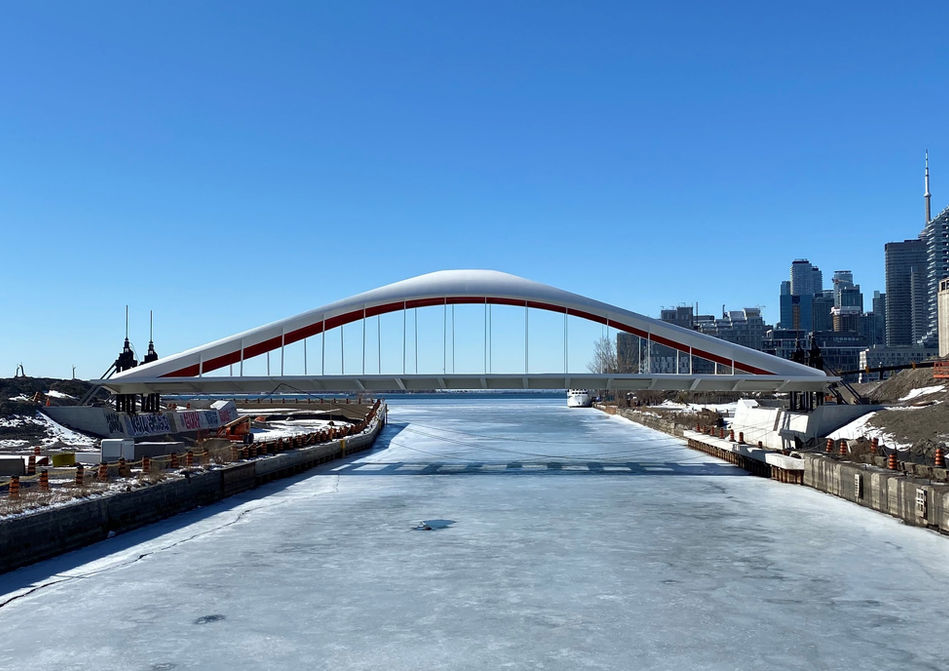

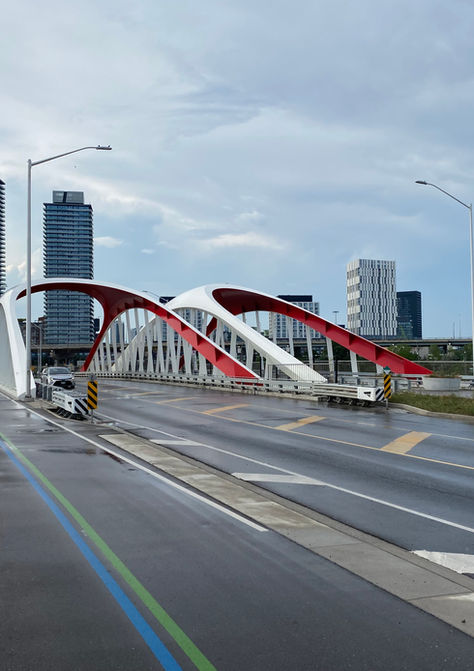

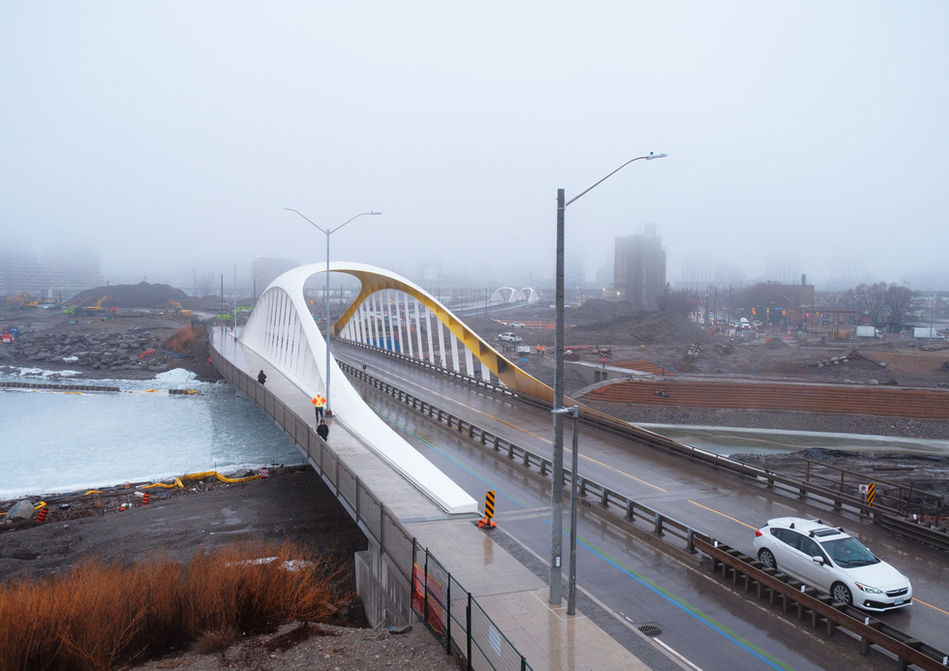

Entuitive was retained by Waterfront Toronto as the Prime Consultant for the PLFPEIP Bridges and Engineering Contract. Managing eight subconsultants, Entuitive’s scope included the design and construction of four new signature bridges (Cherry Street North Road and LRT Bridges, Cherry Street South Bridge, and Commissioners Street Bridge) and the demolition of the existing Cherry Street Bridge.

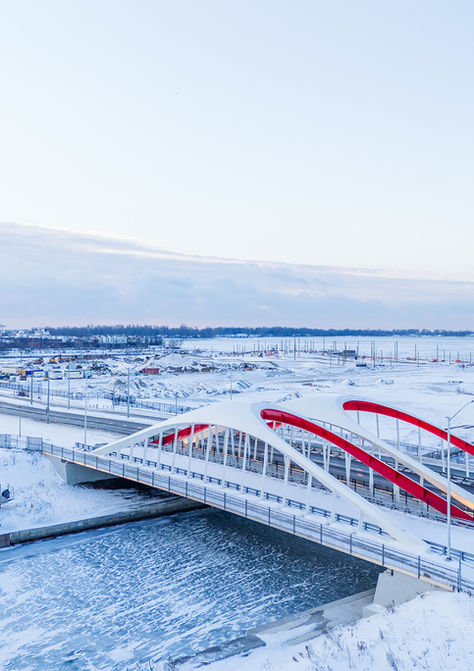

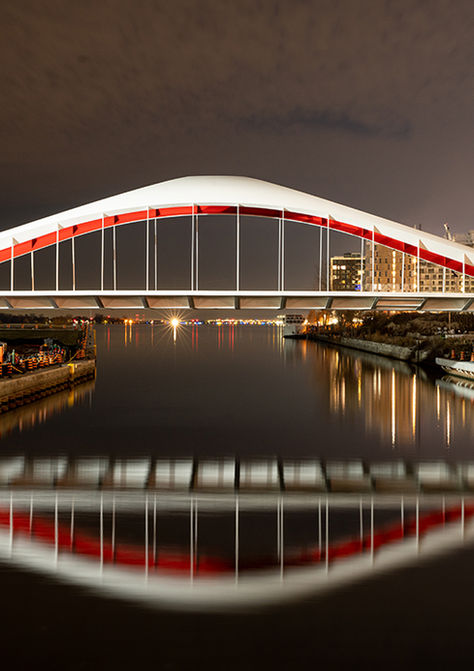

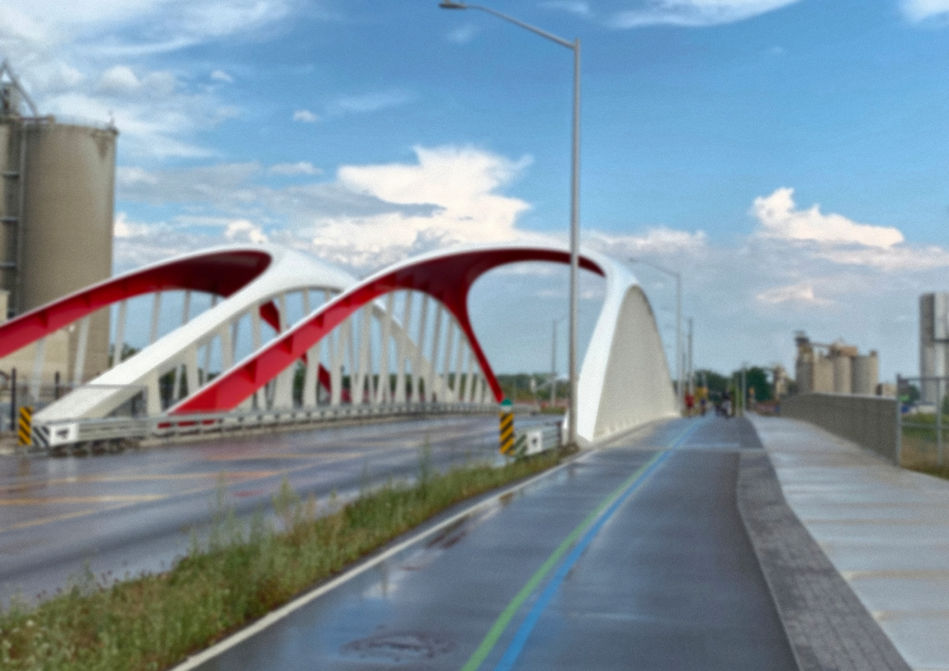

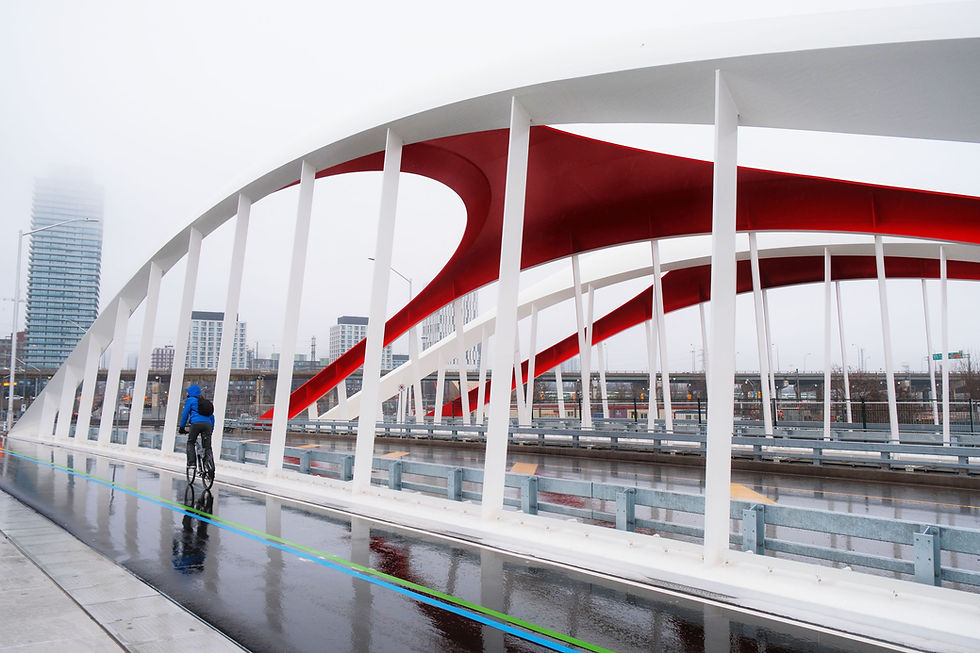

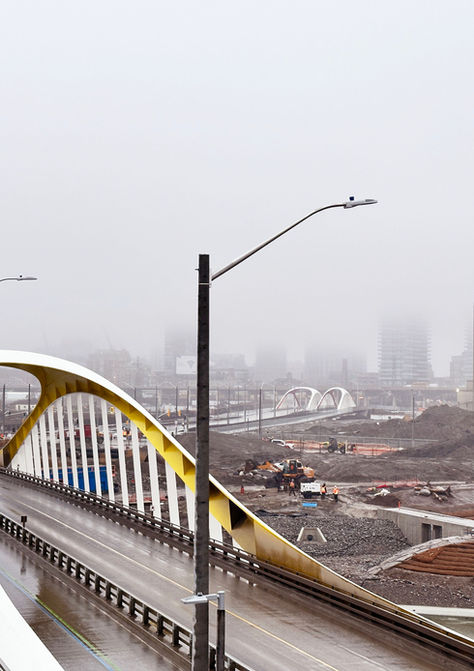

Entuitive designed all four bridges to serve as elegant, modern landmarks significant to the city. The bridges will accommodate vehicular traffic, an interim BRT, future LRT, dedicated bike lane, and generous sidewalks that will double as public space.

PROJECT HIGHLIGHTS

CLIENT

Waterfront Toronto

ARCHITECT

Grimshaw Architects

OUR ROLE(S)

Prime Consultant;
Structural Engineering Consultant;
Construction Administration Lead

SIZE

Spans:
Cherry Street North Bridge – 56 m;
Cherry Street South Bridge – 110 m;
Commissioners Street Bridge – 150 m;
Lake Shore Road Bridges – 100 m;
Port of Toronto Railway Bridge – 100 m

BUDGET

$140 M

MARKET (OFFICE)

TORONTO
