The Bow 6th Avenue Grade Level Bridge
Expansion Joint Remediation

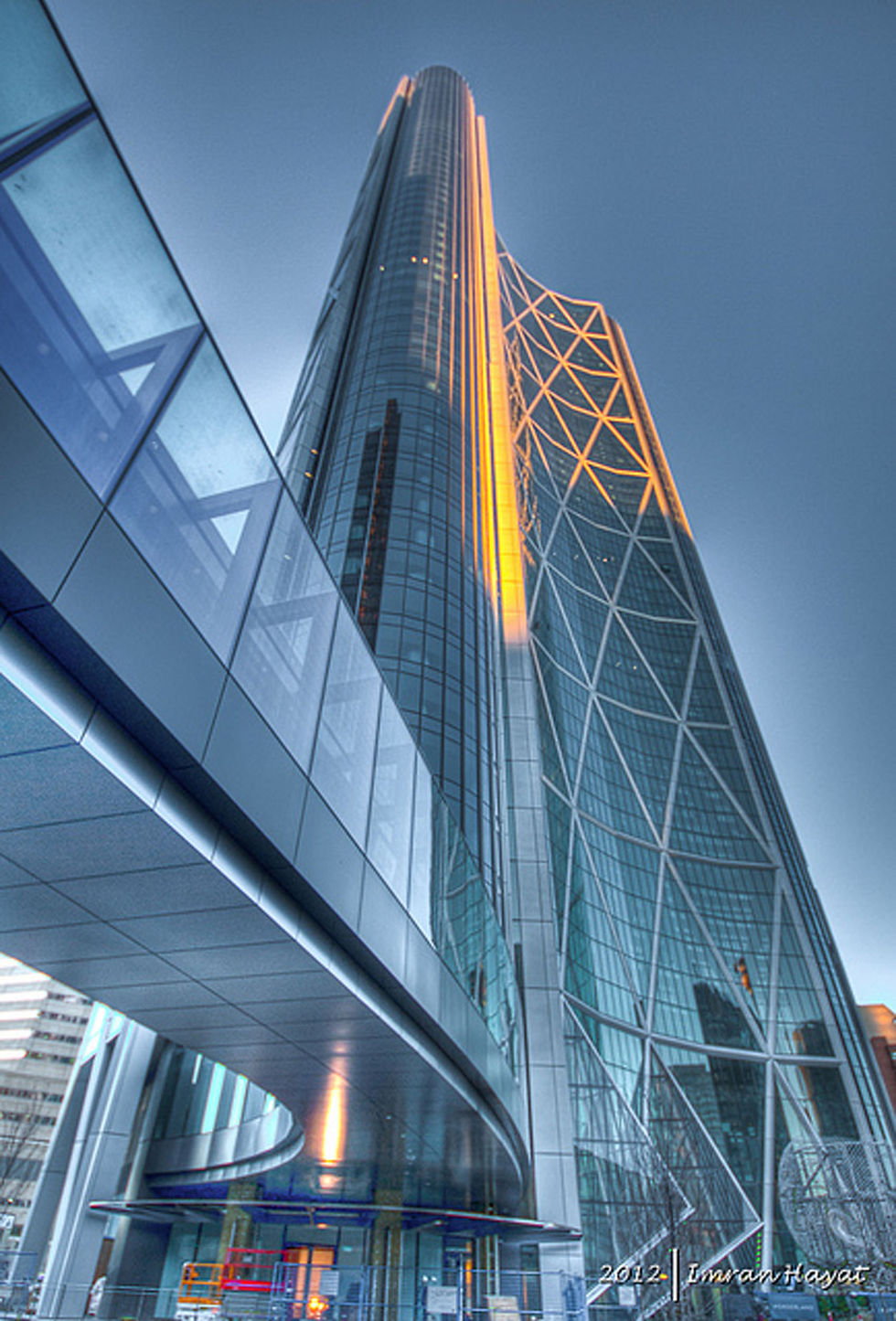

The Bow is one of the most notable buildings located in downtown Calgary.

CALGARY, AB

The skyscraper reaches 58-storeys tall and contains a real estate area nearly two city blocks.

Original designs consisted of a second smaller tower located on the south side of 6th Avenue. The six-level underground parkade therefore extends from the north side of 6th Avenue to the south side.

The Bow is the only structure in downtown Calgary that utilizes a grade-level bridge along 6th Avenue to achieve a continuous parkade below the roadway.

PROJECT HIGHLIGHTS

CLIENT

HR REIT

ARCHITECT

-

OUR ROLE(S)

Structural Engineering Consultant;
Building Envelope Consultant

SIZE

-

BUDGET

-

MARKET (OFFICE)

CALGARY

LEARN MORE ABOUT HOW ENTUITIVE APPROACHES ENGINEERING CHALLENGES, AND DISCOVER WHY ENGINEERING PERFORMANCE MATTERS FOR YOUR PROJECT.

KEY CONSIDERATIONS

Challenge One

Discontinuity in the expansion joint detailing along the bridge, both at vertical and horizontal components, became apparent shortly after construction. An ongoing issue of moisture seepage was the result. In addition, most of the expansion joint detailing was concealed.

Solution One

Thorough review of base building drawings combined with exploratory investigations enabled Entuitive to conclusively determine the seepage cause and point of origin. Solutions to mitigate the mositure seepage were then developed and implmented, which included repair of accessible expansion joint issues and introduction of a custom weeping system via drain pipes bored through the foundation walls at select locations.
